Acer Incorporated Gateway GW2000ht-GW170ht F1 ssj_ops@100% = 888,375
ssj_ops@100% per JVM = 148,063
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Jul 26, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Aug 25, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     891,533
Calibration 2     892,800
Calibration 3     893,765
ssj_ops@calibrated=893,282
100% 99.5% 893,282 888,375
90% 90.1% 803,954 804,502
80% 80.1% 714,626 715,235
70% 70.2% 625,298 626,885
60% 60.2% 535,969 537,714
50% 49.8% 446,641 444,897
40% 39.8% 357,313 355,825
30% 30.0% 267,985 268,326
20% 19.8% 178,656 176,535
10% 10.0% 89,328 89,523
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000ht-GW170ht F1
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12.0
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 1A, 2A, and 3A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82574L Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: NVIDIA Tesla C2050 GPU Card
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: D03 07/22/2010
Management Firmware Version: 0.01 06/04/2010
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
GW2000ht-GPU-2nd-Node.001 147,022
GW2000ht-GPU-2nd-Node.002 148,714
GW2000ht-GPU-2nd-Node.003 151,208
GW2000ht-GPU-2nd-Node.004 147,172
GW2000ht-GPU-2nd-Node.005 146,850
GW2000ht-GPU-2nd-Node.006 147,409
ssj_ops@100% 888,375
ssj_ops@100% per JVM 148,063
Graph of per-instance results

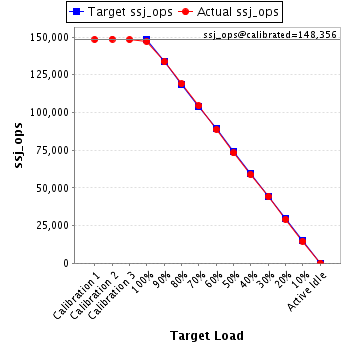

JVM 'GW2000ht-GPU-2nd-Node.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,359
Calibration 2     148,569
Calibration 3     148,142
ssj_ops@calibrated=148,356
100% 99.1% 148,356 147,022
90% 90.0% 133,520 133,580
80% 80.1% 118,685 118,904
70% 70.3% 103,849 104,339
60% 59.8% 89,014 88,733
50% 49.3% 74,178 73,128
40% 39.5% 59,342 58,645
30% 29.8% 44,507 44,262
20% 19.6% 29,671 29,062
10% 9.8% 14,836 14,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-2nd-Node.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,805
Calibration 2     149,353
Calibration 3     149,539
ssj_ops@calibrated=149,446
100% 99.5% 149,446 148,714
90% 90.0% 134,502 134,456
80% 80.3% 119,557 119,968
70% 70.2% 104,612 104,958
60% 59.9% 89,668 89,514
50% 50.5% 74,723 75,399
40% 39.9% 59,778 59,639
30% 30.0% 44,834 44,810
20% 19.9% 29,889 29,735
10% 9.9% 14,945 14,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-2nd-Node.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,484
Calibration 2     151,009
Calibration 3     150,273
ssj_ops@calibrated=150,641
100% 100.4% 150,641 151,208
90% 91.0% 135,577 137,048
80% 79.8% 120,513 120,166
70% 70.9% 105,449 106,799
60% 60.5% 90,385 91,198
50% 49.5% 75,321 74,517
40% 40.1% 60,257 60,396
30% 30.0% 45,192 45,119
20% 19.7% 30,128 29,650
10% 10.0% 15,064 15,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-2nd-Node.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,738
Calibration 2     148,338
Calibration 3     148,380
ssj_ops@calibrated=148,359
100% 99.2% 148,359 147,172
90% 89.2% 133,523 132,299
80% 80.2% 118,687 118,953
70% 69.9% 103,851 103,632
60% 60.6% 89,015 89,931
50% 50.3% 74,179 74,661
40% 40.1% 59,344 59,421
30% 30.6% 44,508 45,460
20% 20.0% 29,672 29,714
10% 9.9% 14,836 14,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-2nd-Node.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,194
Calibration 2     147,229
Calibration 3     148,229
ssj_ops@calibrated=147,729
100% 99.4% 147,729 146,850
90% 89.7% 132,956 132,552
80% 80.2% 118,183 118,463
70% 70.1% 103,410 103,570
60% 60.0% 88,637 88,600
50% 49.7% 73,865 73,365
40% 39.4% 59,092 58,266
30% 29.7% 44,319 43,922
20% 19.6% 29,546 28,923
10% 10.3% 14,773 15,173
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-2nd-Node.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,952
Calibration 2     148,301
Calibration 3     149,201
ssj_ops@calibrated=148,751
100% 99.1% 148,751 147,409
90% 90.5% 133,876 134,566
80% 79.9% 119,001 118,781
70% 69.6% 104,126 103,587
60% 60.3% 89,250 89,737
50% 49.6% 74,375 73,827
40% 40.0% 59,500 59,458
30% 30.1% 44,625 44,753
20% 19.8% 29,750 29,452
10% 10.2% 14,875 15,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
