Acer Incorporated Gateway GW2000ht-GW170ht F1 ssj_ops@100% = 883,684
ssj_ops@100% per JVM = 147,281
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Jul 26, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Aug 25, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     889,211
Calibration 2     888,191
Calibration 3     889,060
ssj_ops@calibrated=888,626
100% 99.4% 888,626 883,684
90% 89.5% 799,763 795,336
80% 80.2% 710,900 712,467
70% 69.9% 622,038 621,365
60% 60.1% 533,175 534,458
50% 49.9% 444,313 443,647
40% 40.1% 355,450 355,907
30% 30.2% 266,588 268,388
20% 20.0% 177,725 177,980
10% 10.0% 88,863 88,581
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000ht-GW170ht F1
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12.0
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 1A, 2A, and 3A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82574L Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: NVIDIA Tesla C2050 GPU Card
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: D03 07/22/2010
Management Firmware Version: 0.01 06/04/2010
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
GW2000ht-GPU-1st-Node.001 147,756
GW2000ht-GPU-1st-Node.002 145,877
GW2000ht-GPU-1st-Node.003 143,553
GW2000ht-GPU-1st-Node.004 147,553
GW2000ht-GPU-1st-Node.005 148,458
GW2000ht-GPU-1st-Node.006 150,487
ssj_ops@100% 883,684
ssj_ops@100% per JVM 147,281
Graph of per-instance results

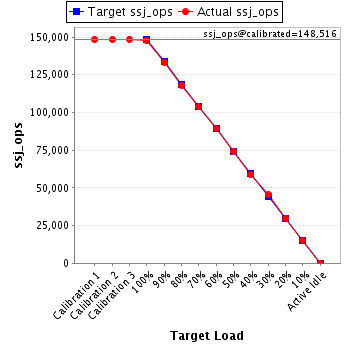

JVM 'GW2000ht-GPU-1st-Node.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,391
Calibration 2     148,389
Calibration 3     148,642
ssj_ops@calibrated=148,516
100% 99.5% 148,516 147,756
90% 89.8% 133,664 133,349
80% 79.6% 118,812 118,158
70% 69.8% 103,961 103,711
60% 60.1% 89,109 89,263
50% 50.1% 74,258 74,391
40% 39.6% 59,406 58,840
30% 30.6% 44,555 45,462
20% 19.9% 29,703 29,605
10% 10.1% 14,852 15,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-1st-Node.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,952
Calibration 2     146,386
Calibration 3     147,221
ssj_ops@calibrated=146,804
100% 99.4% 146,804 145,877
90% 89.8% 132,123 131,887
80% 80.3% 117,443 117,859
70% 69.8% 102,762 102,500
60% 60.3% 88,082 88,563
50% 50.1% 73,402 73,498
40% 40.1% 58,721 58,862
30% 29.7% 44,041 43,557
20% 19.6% 29,361 28,754
10% 9.8% 14,680 14,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-1st-Node.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,595
Calibration 2     145,365
Calibration 3     145,052
ssj_ops@calibrated=145,208
100% 98.9% 145,208 143,553
90% 89.7% 130,688 130,280
80% 80.8% 116,167 117,336
70% 69.5% 101,646 100,934
60% 59.7% 87,125 86,732
50% 50.4% 72,604 73,124
40% 40.8% 58,083 59,295
30% 29.7% 43,563 43,154
20% 20.1% 29,042 29,249
10% 9.9% 14,521 14,332
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-1st-Node.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,792
Calibration 2     147,856
Calibration 3     147,794
ssj_ops@calibrated=147,825
100% 99.8% 147,825 147,553
90% 90.2% 133,043 133,332
80% 80.1% 118,260 118,446
70% 70.5% 103,478 104,150
60% 60.6% 88,695 89,576
50% 49.9% 73,913 73,787
40% 39.8% 59,130 58,820
30% 30.4% 44,348 45,005
20% 20.1% 29,565 29,661
10% 9.9% 14,783 14,622
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-1st-Node.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,186
Calibration 2     148,418
Calibration 3     148,772
ssj_ops@calibrated=148,595
100% 99.9% 148,595 148,458
90% 89.0% 133,735 132,206
80% 80.5% 118,876 119,574
70% 69.6% 104,016 103,471
60% 59.6% 89,157 88,630
50% 49.3% 74,297 73,196
40% 40.1% 59,438 59,555
30% 30.2% 44,578 44,838
20% 20.3% 29,719 30,162
10% 9.9% 14,859 14,645
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'GW2000ht-GPU-1st-Node.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,295
Calibration 2     151,776
Calibration 3     151,579
ssj_ops@calibrated=151,678
100% 99.2% 151,678 150,487
90% 88.5% 136,510 134,281
80% 79.8% 121,342 121,095
70% 70.3% 106,174 106,599
60% 60.5% 91,007 91,694
50% 49.9% 75,839 75,651
40% 39.9% 60,671 60,534
30% 30.6% 45,503 46,372
20% 20.1% 30,336 30,549
10% 10.3% 15,168 15,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
