Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 3,100,233
ssj_ops@100% per JVM = 193,765
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 17, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,139,866
Calibration 2     3,097,552
Calibration 3     3,104,275
ssj_ops@calibrated=3,100,913
100% 100.0% 3,100,913 3,100,233
90% 90.0% 2,790,822 2,790,485
80% 79.8% 2,480,731 2,475,595
70% 70.1% 2,170,639 2,172,215
60% 59.9% 1,860,548 1,858,844
50% 50.0% 1,550,457 1,552,003
40% 40.0% 1,240,365 1,239,926
30% 30.0% 930,274 930,906
20% 20.0% 620,183 620,203
10% 10.0% 310,091 310,572
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 10
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-5C8S426S2RU.001 194,626
WIN-5C8S426S2RU.002 193,470
WIN-5C8S426S2RU.003 197,553
WIN-5C8S426S2RU.004 195,471
WIN-5C8S426S2RU.005 190,966
WIN-5C8S426S2RU.006 193,685
WIN-5C8S426S2RU.007 192,321
WIN-5C8S426S2RU.008 192,409
WIN-5C8S426S2RU.009 195,225
WIN-5C8S426S2RU.010 194,436
WIN-5C8S426S2RU.011 195,816
WIN-5C8S426S2RU.012 195,009
WIN-5C8S426S2RU.013 192,557
WIN-5C8S426S2RU.014 193,564
WIN-5C8S426S2RU.015 189,201
WIN-5C8S426S2RU.016 193,923
ssj_ops@100% 3,100,233
ssj_ops@100% per JVM 193,765
Graph of per-instance results
JVM 'WIN-5C8S426S2RU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,075
Calibration 2     195,254
Calibration 3     193,999
ssj_ops@calibrated=194,627
100% 100.0% 194,627 194,626
90% 90.3% 175,164 175,783
80% 79.4% 155,701 154,498
70% 70.1% 136,239 136,342
60% 60.2% 116,776 117,202
50% 49.8% 97,313 96,942
40% 39.7% 77,851 77,272
30% 29.7% 58,388 57,813
20% 19.9% 38,925 38,752
10% 9.8% 19,463 19,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,756
Calibration 2     193,553
Calibration 3     193,816
ssj_ops@calibrated=193,684
100% 99.9% 193,684 193,470
90% 89.9% 174,316 174,123
80% 79.5% 154,947 154,005
70% 70.6% 135,579 136,754
60% 59.5% 116,211 115,334
50% 49.9% 96,842 96,637
40% 40.1% 77,474 77,685
30% 29.9% 58,105 57,935
20% 20.1% 38,737 38,956
10% 10.3% 19,368 20,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,142
Calibration 2     197,670
Calibration 3     197,827
ssj_ops@calibrated=197,749
100% 99.9% 197,749 197,553
90% 89.9% 177,974 177,816
80% 79.4% 158,199 157,012
70% 69.8% 138,424 138,064
60% 60.1% 118,649 118,806
50% 49.8% 98,874 98,520
40% 40.0% 79,100 79,036
30% 29.9% 59,325 59,046
20% 19.8% 39,550 39,248
10% 10.0% 19,775 19,710
Active Idle   0 0

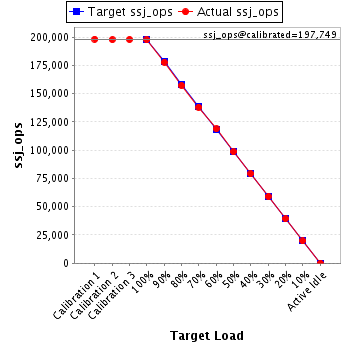

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,495
Calibration 2     195,010
Calibration 3     195,245
ssj_ops@calibrated=195,127
100% 100.2% 195,127 195,471
90% 89.6% 175,615 174,834
80% 80.4% 156,102 156,899
70% 70.4% 136,589 137,429
60% 59.7% 117,076 116,486
50% 49.7% 97,564 97,066
40% 39.8% 78,051 77,565
30% 29.8% 58,538 58,242
20% 20.0% 39,025 39,087
10% 10.0% 19,513 19,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,926
Calibration 2     189,723
Calibration 3     190,926
ssj_ops@calibrated=190,325
100% 100.3% 190,325 190,966
90% 90.4% 171,292 172,035
80% 79.0% 152,260 150,384
70% 69.9% 133,227 133,106
60% 59.9% 114,195 113,968
50% 49.8% 95,162 94,769
40% 40.2% 76,130 76,471
30% 29.7% 57,097 56,544
20% 19.5% 38,065 37,194
10% 10.1% 19,032 19,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,482
Calibration 2     192,301
Calibration 3     193,652
ssj_ops@calibrated=192,977
100% 100.4% 192,977 193,685
90% 90.5% 173,679 174,595
80% 80.1% 154,381 154,508
70% 69.5% 135,084 134,128
60% 59.7% 115,786 115,213
50% 50.0% 96,488 96,564
40% 40.1% 77,191 77,340
30% 29.9% 57,893 57,751
20% 20.2% 38,595 39,018
10% 10.1% 19,298 19,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,618
Calibration 2     192,309
Calibration 3     193,633
ssj_ops@calibrated=192,971
100% 99.7% 192,971 192,321
90% 90.0% 173,674 173,655
80% 80.3% 154,377 154,923
70% 70.5% 135,080 135,966
60% 60.1% 115,783 115,936
50% 50.5% 96,486 97,425
40% 39.9% 77,189 77,077
30% 30.0% 57,891 57,986
20% 19.9% 38,594 38,481
10% 9.9% 19,297 19,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,072
Calibration 2     192,256
Calibration 3     192,862
ssj_ops@calibrated=192,559
100% 99.9% 192,559 192,409
90% 90.3% 173,303 173,819
80% 79.7% 154,047 153,472
70% 69.8% 134,791 134,433
60% 60.4% 115,535 116,286
50% 50.4% 96,279 97,015
40% 39.2% 77,023 75,576
30% 29.7% 57,768 57,155
20% 20.1% 38,512 38,629
10% 10.1% 19,256 19,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,226
Calibration 2     195,297
Calibration 3     195,459
ssj_ops@calibrated=195,378
100% 99.9% 195,378 195,225
90% 90.8% 175,840 177,384
80% 80.0% 156,303 156,275
70% 70.5% 136,765 137,800
60% 59.9% 117,227 117,005
50% 50.7% 97,689 99,000
40% 39.8% 78,151 77,731
30% 30.8% 58,613 60,271
20% 20.2% 39,076 39,540
10% 9.8% 19,538 19,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,546
Calibration 2     194,518
Calibration 3     195,893
ssj_ops@calibrated=195,206
100% 99.6% 195,206 194,436
90% 89.9% 175,685 175,494
80% 80.1% 156,165 156,267
70% 69.9% 136,644 136,486
60% 60.5% 117,124 118,112
50% 49.9% 97,603 97,351
40% 40.2% 78,082 78,444
30% 30.0% 58,562 58,650
20% 20.4% 39,041 39,806
10% 9.9% 19,521 19,377
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,356
Calibration 2     197,587
Calibration 3     195,523
ssj_ops@calibrated=196,555
100% 99.6% 196,555 195,816
90% 89.8% 176,899 176,532
80% 80.2% 157,244 157,727
70% 70.2% 137,588 138,063
60% 60.3% 117,933 118,520
50% 49.7% 98,277 97,686
40% 39.8% 78,622 78,314
30% 30.0% 58,966 58,980
20% 19.9% 39,311 39,107
10% 9.7% 19,655 19,074
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,912
Calibration 2     195,429
Calibration 3     195,013
ssj_ops@calibrated=195,221
100% 99.9% 195,221 195,009
90% 89.7% 175,699 175,103
80% 79.6% 156,177 155,384
70% 70.3% 136,654 137,199
60% 60.0% 117,132 117,196
50% 50.4% 97,610 98,300
40% 39.9% 78,088 77,955
30% 30.0% 58,566 58,592
20% 20.1% 39,044 39,298
10% 10.1% 19,522 19,663
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,571
Calibration 2     192,572
Calibration 3     193,193
ssj_ops@calibrated=192,882
100% 99.8% 192,882 192,557
90% 89.7% 173,594 173,109
80% 80.0% 154,306 154,236
70% 69.8% 135,018 134,648
60% 59.8% 115,729 115,353
50% 49.7% 96,441 95,856
40% 40.5% 77,153 78,121
30% 30.5% 57,865 58,822
20% 20.1% 38,576 38,696
10% 9.8% 19,288 18,982
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,433
Calibration 2     193,455
Calibration 3     193,901
ssj_ops@calibrated=193,678
100% 99.9% 193,678 193,564
90% 90.4% 174,310 175,034
80% 79.5% 154,942 153,999
70% 69.7% 135,575 134,954
60% 59.6% 116,207 115,374
50% 50.1% 96,839 97,050
40% 40.0% 77,471 77,500
30% 29.8% 58,103 57,740
20% 19.9% 38,736 38,528
10% 9.9% 19,368 19,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,993
Calibration 2     189,093
Calibration 3     190,426
ssj_ops@calibrated=189,759
100% 99.7% 189,759 189,201
90% 89.2% 170,784 169,242
80% 80.5% 151,808 152,815
70% 69.9% 132,832 132,576
60% 60.1% 113,856 114,034
50% 50.3% 94,880 95,436
40% 40.2% 75,904 76,352
30% 30.1% 56,928 57,196
20% 20.0% 37,952 37,894
10% 10.4% 18,976 19,677
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,262
Calibration 2     191,526
Calibration 3     192,906
ssj_ops@calibrated=192,216
100% 100.9% 192,216 193,923
90% 89.4% 172,994 171,926
80% 79.7% 153,773 153,191
70% 69.9% 134,551 134,266
60% 59.3% 115,329 114,020
50% 50.1% 96,108 96,385
40% 40.3% 76,886 77,487
30% 30.3% 57,665 58,183
20% 19.8% 38,443 37,968
10% 10.3% 19,222 19,798
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
