Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 1,422,260
ssj_ops@100% per JVM = 88,891
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,341,273
Calibration 2     1,422,866
Calibration 3     1,421,918
ssj_ops@calibrated=1,422,392
100% 100.0% 1,422,392 1,422,260
90% 89.9% 1,280,153 1,278,177
80% 80.0% 1,137,914 1,137,231
70% 69.8% 995,675 993,036
60% 59.9% 853,435 852,442
50% 50.1% 711,196 712,016
40% 39.9% 568,957 567,208
30% 30.2% 426,718 428,985
20% 20.0% 284,478 284,392
10% 9.8% 142,239 139,623
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M620-03.001 87,711
M620-03.002 89,235
M620-03.003 89,818
M620-03.004 88,301
M620-03.005 88,821
M620-03.006 89,526
M620-03.007 88,407
M620-03.008 89,342
M620-03.009 88,434
M620-03.010 89,430
M620-03.011 88,562
M620-03.012 87,538
M620-03.013 88,701
M620-03.014 89,178
M620-03.015 88,652
M620-03.016 90,603
ssj_ops@100% 1,422,260
ssj_ops@100% per JVM 88,891
Graph of per-instance results
JVM 'M620-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,081
Calibration 2     88,421
Calibration 3     88,862
ssj_ops@calibrated=88,641
100% 99.0% 88,641 87,711
90% 89.5% 79,777 79,377
80% 80.6% 70,913 71,465
70% 69.8% 62,049 61,851
60% 59.7% 53,185 52,942
50% 50.1% 44,321 44,367
40% 40.0% 35,457 35,428
30% 30.3% 26,592 26,858
20% 19.5% 17,728 17,257
10% 9.5% 8,864 8,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,587
Calibration 2     88,892
Calibration 3     89,375
ssj_ops@calibrated=89,134
100% 100.1% 89,134 89,235
90% 91.1% 80,220 81,228
80% 81.1% 71,307 72,329
70% 70.3% 62,394 62,634
60% 60.3% 53,480 53,780
50% 49.9% 44,567 44,469
40% 39.5% 35,653 35,252
30% 30.1% 26,740 26,789
20% 20.1% 17,827 17,948
10% 9.7% 8,913 8,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,516
Calibration 2     89,740
Calibration 3     88,890
ssj_ops@calibrated=89,315
100% 100.6% 89,315 89,818
90% 90.3% 80,384 80,635
80% 79.7% 71,452 71,184
70% 69.6% 62,521 62,184
60% 59.4% 53,589 53,086
50% 50.6% 44,658 45,165
40% 39.6% 35,726 35,380
30% 29.4% 26,795 26,296
20% 19.4% 17,863 17,368
10% 9.7% 8,932 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,727
Calibration 2     88,343
Calibration 3     88,096
ssj_ops@calibrated=88,220
100% 100.1% 88,220 88,301
90% 89.6% 79,398 79,074
80% 80.4% 70,576 70,888
70% 70.7% 61,754 62,359
60% 59.0% 52,932 52,068
50% 50.8% 44,110 44,804
40% 39.3% 35,288 34,713
30% 30.7% 26,466 27,105
20% 19.9% 17,644 17,537
10% 9.8% 8,822 8,669
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,908
Calibration 2     88,598
Calibration 3     88,925
ssj_ops@calibrated=88,762
100% 100.1% 88,762 88,821
90% 89.9% 79,886 79,812
80% 79.2% 71,009 70,278
70% 69.4% 62,133 61,571
60% 60.8% 53,257 53,966
50% 50.6% 44,381 44,888
40% 39.5% 35,505 35,049
30% 30.5% 26,629 27,030
20% 19.9% 17,752 17,687
10% 9.9% 8,876 8,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,240
Calibration 2     89,568
Calibration 3     89,294
ssj_ops@calibrated=89,431
100% 100.1% 89,431 89,526
90% 90.4% 80,488 80,842
80% 79.6% 71,545 71,195
70% 69.4% 62,602 62,069
60% 60.3% 53,659 53,908
50% 50.1% 44,716 44,788
40% 40.4% 35,772 36,116
30% 30.0% 26,829 26,815
20% 20.5% 17,886 18,330
10% 10.2% 8,943 9,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,893
Calibration 2     88,280
Calibration 3     88,022
ssj_ops@calibrated=88,151
100% 100.3% 88,151 88,407
90% 90.1% 79,336 79,441
80% 80.4% 70,521 70,855
70% 69.5% 61,706 61,242
60% 60.6% 52,891 53,458
50% 49.2% 44,076 43,394
40% 40.5% 35,260 35,677
30% 29.6% 26,445 26,049
20% 19.9% 17,630 17,541
10% 9.7% 8,815 8,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

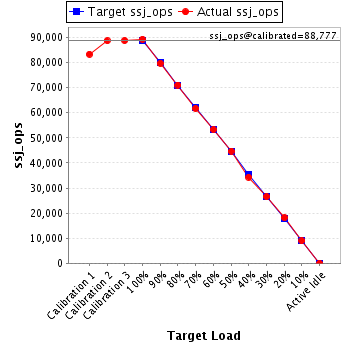

JVM 'M620-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,365
Calibration 2     88,720
Calibration 3     88,834
ssj_ops@calibrated=88,777
100% 100.6% 88,777 89,342
90% 89.8% 79,900 79,682
80% 80.0% 71,022 71,052
70% 69.5% 62,144 61,742
60% 60.0% 53,266 53,307
50% 50.3% 44,389 44,696
40% 38.7% 35,511 34,318
30% 29.9% 26,633 26,569
20% 20.4% 17,755 18,122
10% 10.1% 8,878 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,472
Calibration 2     88,764
Calibration 3     88,513
ssj_ops@calibrated=88,639
100% 99.8% 88,639 88,434
90% 89.6% 79,775 79,452
80% 79.9% 70,911 70,833
70% 68.8% 62,047 60,962
60% 59.3% 53,183 52,575
50% 50.5% 44,319 44,741
40% 41.0% 35,456 36,369
30% 30.1% 26,592 26,659
20% 20.0% 17,728 17,726
10% 10.1% 8,864 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,270
Calibration 2     89,232
Calibration 3     89,126
ssj_ops@calibrated=89,179
100% 100.3% 89,179 89,430
90% 89.5% 80,261 79,833
80% 78.6% 71,343 70,105
70% 70.1% 62,425 62,549
60% 59.5% 53,507 53,061
50% 49.8% 44,589 44,403
40% 40.3% 35,672 35,943
30% 29.8% 26,754 26,572
20% 19.8% 17,836 17,651
10% 9.6% 8,918 8,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,473
Calibration 2     88,718
Calibration 3     89,194
ssj_ops@calibrated=88,956
100% 99.6% 88,956 88,562
90% 89.7% 80,060 79,790
80% 80.0% 71,165 71,139
70% 69.6% 62,269 61,943
60% 59.9% 53,374 53,281
50% 49.9% 44,478 44,363
40% 39.9% 35,582 35,503
30% 30.0% 26,687 26,686
20% 19.9% 17,791 17,718
10% 9.9% 8,896 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,565
Calibration 2     88,067
Calibration 3     87,592
ssj_ops@calibrated=87,830
100% 99.7% 87,830 87,538
90% 89.0% 79,047 78,186
80% 79.8% 70,264 70,099
70% 69.1% 61,481 60,705
60% 60.1% 52,698 52,807
50% 50.1% 43,915 43,967
40% 39.9% 35,132 35,032
30% 31.0% 26,349 27,232
20% 20.0% 17,566 17,595
10% 10.2% 8,783 8,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,096
Calibration 2     89,343
Calibration 3     89,124
ssj_ops@calibrated=89,233
100% 99.4% 89,233 88,701
90% 90.8% 80,310 81,039
80% 79.6% 71,387 71,002
70% 70.3% 62,463 62,703
60% 59.8% 53,540 53,393
50% 49.8% 44,617 44,471
40% 39.9% 35,693 35,644
30% 30.9% 26,770 27,551
20% 20.0% 17,847 17,830
10% 9.7% 8,923 8,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,635
Calibration 2     89,155
Calibration 3     89,021
ssj_ops@calibrated=89,088
100% 100.1% 89,088 89,178
90% 90.0% 80,179 80,210
80% 80.6% 71,270 71,814
70% 70.3% 62,361 62,603
60% 60.0% 53,453 53,479
50% 50.2% 44,544 44,681
40% 40.0% 35,635 35,619
30% 30.3% 26,726 26,957
20% 20.3% 17,818 18,123
10% 9.5% 8,909 8,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,626
Calibration 2     88,612
Calibration 3     88,661
ssj_ops@calibrated=88,636
100% 100.0% 88,636 88,652
90% 89.4% 79,773 79,279
80% 80.4% 70,909 71,288
70% 70.0% 62,045 62,058
60% 59.5% 53,182 52,723
50% 49.8% 44,318 44,139
40% 39.9% 35,455 35,343
30% 29.8% 26,591 26,417
20% 19.8% 17,727 17,551
10% 10.0% 8,864 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,817
Calibration 2     90,412
Calibration 3     90,388
ssj_ops@calibrated=90,400
100% 100.2% 90,400 90,603
90% 88.8% 81,360 80,297
80% 79.3% 72,320 71,705
70% 70.6% 63,280 63,860
60% 60.4% 54,240 54,608
50% 49.4% 45,200 44,680
40% 39.6% 36,160 35,823
30% 30.3% 27,120 27,400
20% 20.4% 18,080 18,407
10% 9.5% 9,040 8,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
