Hitachi, Ltd. BS2000 Server Blade E57A2 ssj_ops@100% = 1,202,815
ssj_ops@100% per JVM = 120,281
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Oct 19, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Nov 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,207,262
Calibration 2     1,210,658
Calibration 3     1,210,871
ssj_ops@calibrated=1,210,765
100% 99.3% 1,210,765 1,202,815
90% 90.0% 1,089,688 1,089,917
80% 79.8% 968,612 965,684
70% 70.0% 847,535 847,853
60% 60.0% 726,459 726,333
50% 50.1% 605,382 606,856
40% 39.8% 484,306 481,959
30% 30.1% 363,229 363,996
20% 19.9% 242,153 240,811
10% 10.1% 121,076 122,463
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E57A2
Form Factor: Blade
CPU Name: Intel Xeon processor E7-8870
CPU Characteristics: Ten Core, 2.40GHz, 30MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 32GB(DDR3 Registered DIMM 4GB x 8) 1067MHz
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 33 GB LUN in RAID1 Raid Group consisting of 2 x 300 GB 15K RPM SAS
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Hitachi 8Gb 2-port FC adapter in PCIe Expansion Slot
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 08-17
Management Firmware Version: 04-60
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
hitachi-4.001 120,627
hitachi-4.002 117,700
hitachi-4.003 122,550
hitachi-4.004 118,929
hitachi-4.005 120,809
hitachi-4.006 118,653
hitachi-4.007 121,968
hitachi-4.008 120,384
hitachi-4.009 121,115
hitachi-4.010 120,079
ssj_ops@100% 1,202,815
ssj_ops@100% per JVM 120,281

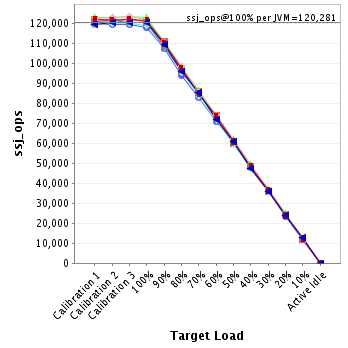

Graph of per-instance results
JVM 'hitachi-4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,902
Calibration 2     122,007
Calibration 3     121,590
ssj_ops@calibrated=121,798
100% 99.0% 121,798 120,627
90% 91.1% 109,618 110,923
80% 79.2% 97,439 96,513
70% 70.3% 85,259 85,589
60% 60.4% 73,079 73,588
50% 49.4% 60,899 60,163
40% 39.6% 48,719 48,199
30% 30.0% 36,539 36,488
20% 19.9% 24,360 24,258
10% 9.7% 12,180 11,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,114
Calibration 2     119,200
Calibration 3     119,148
ssj_ops@calibrated=119,174
100% 98.8% 119,174 117,700
90% 89.9% 107,257 107,152
80% 78.9% 95,339 93,990
70% 69.6% 83,422 82,943
60% 59.3% 71,504 70,699
50% 51.0% 59,587 60,798
40% 40.2% 47,670 47,918
30% 30.1% 35,752 35,816
20% 19.6% 23,835 23,325
10% 10.0% 11,917 11,863
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,642
Calibration 2     122,888
Calibration 3     123,194
ssj_ops@calibrated=123,041
100% 99.6% 123,041 122,550
90% 89.7% 110,737 110,343
80% 80.0% 98,433 98,405
70% 70.2% 86,129 86,407
60% 60.0% 73,825 73,870
50% 50.1% 61,520 61,642
40% 39.9% 49,216 49,122
30% 30.0% 36,912 36,925
20% 20.1% 24,608 24,724
10% 10.2% 12,304 12,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,047
Calibration 2     119,635
Calibration 3     119,755
ssj_ops@calibrated=119,695
100% 99.4% 119,695 118,929
90% 90.3% 107,725 108,124
80% 79.7% 95,756 95,338
70% 69.8% 83,786 83,560
60% 60.5% 71,817 72,375
50% 50.8% 59,847 60,794
40% 39.7% 47,878 47,572
30% 30.2% 35,908 36,089
20% 20.0% 23,939 23,908
10% 10.1% 11,969 12,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,783
Calibration 2     121,454
Calibration 3     121,773
ssj_ops@calibrated=121,613
100% 99.3% 121,613 120,809
90% 89.9% 109,452 109,330
80% 80.4% 97,291 97,819
70% 69.7% 85,129 84,730
60% 60.2% 72,968 73,163
50% 50.8% 60,807 61,741
40% 40.2% 48,645 48,848
30% 30.4% 36,484 36,927
20% 19.6% 24,323 23,890
10% 9.7% 12,161 11,782
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,538
Calibration 2     119,680
Calibration 3     119,861
ssj_ops@calibrated=119,770
100% 99.1% 119,770 118,653
90% 89.9% 107,793 107,677
80% 79.9% 95,816 95,696
70% 69.7% 83,839 83,488
60% 59.6% 71,862 71,377
50% 49.5% 59,885 59,230
40% 39.8% 47,908 47,673
30% 30.4% 35,931 36,433
20% 19.9% 23,954 23,858
10% 10.2% 11,977 12,253
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,360
Calibration 2     122,910
Calibration 3     123,338
ssj_ops@calibrated=123,124
100% 99.1% 123,124 121,968
90% 89.2% 110,812 109,842
80% 79.7% 98,499 98,153
70% 69.7% 86,187 85,822
60% 60.0% 73,874 73,861
50% 50.0% 61,562 61,572
40% 39.6% 49,250 48,740
30% 30.2% 36,937 37,162
20% 19.9% 24,625 24,493
10% 10.3% 12,312 12,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,650
Calibration 2     121,019
Calibration 3     120,328
ssj_ops@calibrated=120,673
100% 99.8% 120,673 120,384
90% 89.3% 108,606 107,821
80% 79.9% 96,539 96,400
70% 70.6% 84,471 85,204
60% 59.7% 72,404 72,052
50% 49.4% 60,337 59,577
40% 40.1% 48,269 48,354
30% 29.8% 36,202 35,935
20% 20.2% 24,135 24,342
10% 10.3% 12,067 12,485
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,841
Calibration 2     121,457
Calibration 3     121,625
ssj_ops@calibrated=121,541
100% 99.6% 121,541 121,115
90% 90.2% 109,387 109,624
80% 80.2% 97,233 97,447
70% 69.9% 85,079 84,924
60% 60.5% 72,925 73,476
50% 50.0% 60,770 60,731
40% 39.8% 48,616 48,340
30% 29.9% 36,462 36,340
20% 19.7% 24,308 23,936
10% 10.1% 12,154 12,252
Active Idle   0 0

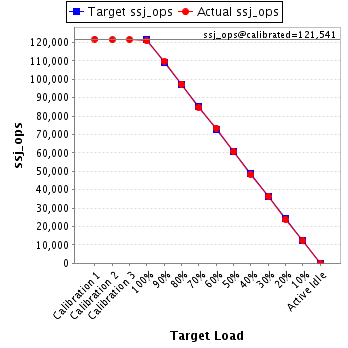

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,386
Calibration 2     120,410
Calibration 3     120,260
ssj_ops@calibrated=120,335
100% 99.8% 120,335 120,079
90% 90.6% 108,302 109,081
80% 79.7% 96,268 95,924
70% 70.8% 84,235 85,186
60% 59.7% 72,201 71,871
50% 50.4% 60,168 60,608
40% 39.2% 48,134 47,195
30% 29.8% 36,101 35,881
20% 20.0% 24,067 24,077
10% 10.5% 12,034 12,640
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
