Hitachi, Ltd. BS2000 Server Blade E57A2 ssj_ops@100% = 1,206,663
ssj_ops@100% per JVM = 120,666
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Oct 19, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Nov 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,207,558
Calibration 2     1,212,732
Calibration 3     1,210,921
ssj_ops@calibrated=1,211,826
100% 99.6% 1,211,826 1,206,663
90% 90.3% 1,090,644 1,094,592
80% 80.1% 969,461 971,062
70% 69.9% 848,278 846,959
60% 60.1% 727,096 728,245
50% 50.0% 605,913 605,973
40% 40.1% 484,731 486,199
30% 30.3% 363,548 367,081
20% 19.9% 242,365 241,338
10% 10.0% 121,183 121,024
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E57A2
Form Factor: Blade
CPU Name: Intel Xeon processor E7-8870
CPU Characteristics: Ten Core, 2.40GHz, 30MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 32GB(DDR3 Registered DIMM 4GB x 8) 1067MHz
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 33 GB LUN in RAID1 Raid Group consisting of 2 x 300 GB 15K RPM SAS
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Hitachi 8Gb 2-port FC adapter in PCIe Expansion Slot
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 08-17
Management Firmware Version: 04-60
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
hitachi-3.001 117,666
hitachi-3.002 123,259
hitachi-3.003 122,453
hitachi-3.004 119,018
hitachi-3.005 121,013
hitachi-3.006 120,283
hitachi-3.007 121,311
hitachi-3.008 121,089
hitachi-3.009 120,912
hitachi-3.010 119,657
ssj_ops@100% 1,206,663
ssj_ops@100% per JVM 120,666

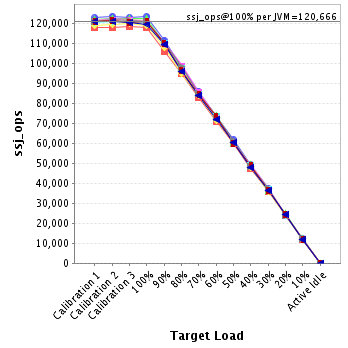

Graph of per-instance results
JVM 'hitachi-3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,923
Calibration 2     118,026
Calibration 3     118,417
ssj_ops@calibrated=118,222
100% 99.5% 118,222 117,666
90% 89.7% 106,400 105,998
80% 80.3% 94,577 94,970
70% 70.2% 82,755 82,963
60% 60.0% 70,933 70,927
50% 50.5% 59,111 59,687
40% 40.0% 47,289 47,347
30% 30.2% 35,467 35,656
20% 20.1% 23,644 23,799
10% 10.1% 11,822 11,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,690
Calibration 2     123,491
Calibration 3     122,881
ssj_ops@calibrated=123,186
100% 100.1% 123,186 123,259
90% 90.4% 110,868 111,409
80% 79.9% 98,549 98,461
70% 69.8% 86,230 85,958
60% 59.8% 73,912 73,619
50% 50.1% 61,593 61,666
40% 39.9% 49,274 49,186
30% 30.2% 36,956 37,171
20% 19.6% 24,637 24,098
10% 10.0% 12,319 12,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,758
Calibration 2     122,548
Calibration 3     122,340
ssj_ops@calibrated=122,444
100% 100.0% 122,444 122,453
90% 89.9% 110,199 110,056
80% 79.9% 97,955 97,875
70% 69.5% 85,711 85,146
60% 60.5% 73,466 74,121
50% 49.4% 61,222 60,467
40% 40.3% 48,978 49,379
30% 29.9% 36,733 36,592
20% 20.2% 24,489 24,751
10% 10.1% 12,244 12,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

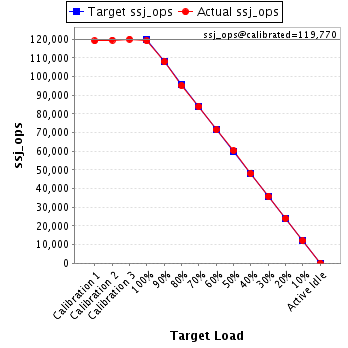

JVM 'hitachi-3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,034
Calibration 2     119,542
Calibration 3     119,998
ssj_ops@calibrated=119,770
100% 99.4% 119,770 119,018
90% 90.1% 107,793 107,885
80% 79.4% 95,816 95,070
70% 70.0% 83,839 83,888
60% 59.7% 71,862 71,482
50% 50.3% 59,885 60,283
40% 40.1% 47,908 48,021
30% 29.9% 35,931 35,853
20% 20.1% 23,954 24,050
10% 10.1% 11,977 12,072
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,377
Calibration 2     122,203
Calibration 3     121,967
ssj_ops@calibrated=122,085
100% 99.1% 122,085 121,013
90% 90.5% 109,876 110,435
80% 81.4% 97,668 99,390
70% 70.5% 85,459 86,093
60% 60.1% 73,251 73,397
50% 49.6% 61,042 60,528
40% 40.5% 48,834 49,409
30% 30.6% 36,625 37,351
20% 19.8% 24,417 24,207
10% 10.1% 12,208 12,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,370
Calibration 2     121,014
Calibration 3     121,072
ssj_ops@calibrated=121,043
100% 99.4% 121,043 120,283
90% 90.9% 108,939 109,974
80% 80.5% 96,835 97,410
70% 69.8% 84,730 84,456
60% 60.6% 72,626 73,318
50% 50.0% 60,522 60,539
40% 40.2% 48,417 48,653
30% 30.6% 36,313 36,989
20% 19.8% 24,209 23,958
10% 9.9% 12,104 11,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,902
Calibration 2     121,659
Calibration 3     121,736
ssj_ops@calibrated=121,698
100% 99.7% 121,698 121,311
90% 89.4% 109,528 108,831
80% 79.7% 97,358 97,039
70% 69.7% 85,188 84,810
60% 60.1% 73,019 73,150
50% 50.2% 60,849 61,071
40% 40.2% 48,679 48,871
30% 30.4% 36,509 36,951
20% 19.6% 24,340 23,806
10% 10.1% 12,170 12,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,764
Calibration 2     121,830
Calibration 3     121,407
ssj_ops@calibrated=121,618
100% 99.6% 121,618 121,089
90% 90.8% 109,457 110,444
80% 80.8% 97,295 98,309
70% 69.9% 85,133 85,029
60% 59.9% 72,971 72,792
50% 50.3% 60,809 61,183
40% 40.0% 48,647 48,642
30% 30.7% 36,486 37,391
20% 19.7% 24,324 23,985
10% 10.1% 12,162 12,302
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,972
Calibration 2     121,342
Calibration 3     120,650
ssj_ops@calibrated=120,996
100% 99.9% 120,996 120,912
90% 91.0% 108,897 110,060
80% 79.8% 96,797 96,578
70% 69.8% 84,697 84,510
60% 60.8% 72,598 73,571
50% 49.7% 60,498 60,102
40% 40.4% 48,398 48,895
30% 30.3% 36,299 36,606
20% 20.0% 24,199 24,227
10% 9.7% 12,100 11,776
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-3.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,768
Calibration 2     121,077
Calibration 3     120,452
ssj_ops@calibrated=120,765
100% 99.1% 120,765 119,657
90% 90.7% 108,688 109,500
80% 79.5% 96,612 95,959
70% 69.6% 84,535 84,107
60% 59.5% 72,459 71,869
50% 50.1% 60,382 60,449
40% 39.6% 48,306 47,796
30% 30.2% 36,229 36,520
20% 20.3% 24,153 24,456
10% 9.7% 12,076 11,693
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
